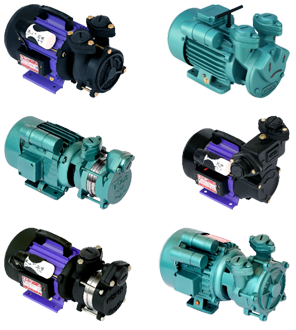

Regenerative Self-Priming Pumps
Features
- All Pumps Regenerative & Self-Priming
- All Impellers Peripheral Type
- All Motors Induction Type, Single Phase & Forced Air Cooled
- Direct Plug-In into 200V, 50 Hz, AC Power
MOC
Part | Material | Grade | Reference Std |
---|---|---|---|
Shaft | Stainless Steel | 410 | - |
Volute | Cast Iron | FG 200 | IS 210 |
Motor Shell | Extruded Al | - | - |
Motor Shell* | Cast Iron | FG 200 | IS 210 |
Impeller | Brass | - | - |
* Noted with the Suffix ‘Gold’ in Model Name
Range
- 1. Motor Power Range from 0.25 HP through 1.00 HP
- 2. Pump sizes from 15 mm through 25 mm Diameter
- 3. Pumps Available in Contemporary as well as Super Suction Profiles
