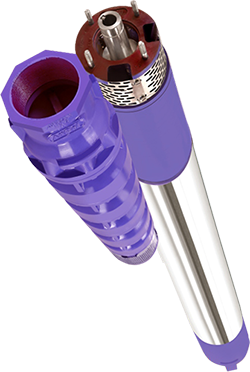

Features
- Pumps in Mixed Flow Option only
- Motor Size is limited to 200 mm
- Maximum Outer Diameter is 186 mm
- All Motors Water Filled; in Three Phase Application
- Motor Power ranges from 45.00 HP through 100.00 HP
- Motors of capacity 45.00 HP through 100.00 HP are with Star-Delta Start
- Coupling is over key-way Arrangement
- Thrust Bearing is made up of Carbon + SS
Nomenclature
E.g.,
A8S |
JUP |
4500 |
1M |
300 |
15 |
|
|
|
|
|
|
Stages |
|||||
| Hydraulic | |||||
| Pump Details MF = Mixed Flow |
|||||
| Motor Power 4500 denotes 45.00 HP 5000 denotes 50.00 HP 6000 denotes 60.00 HP, etc. |
|||||
| Motor Type JUP = Jupiter |
|||||
| General Prefix Denoting Water-filled 8” 3Ø Motor for 8" Pump |
|||||
MOC
| Part | Material | Grade | Reference Std |
|---|---|---|---|
| Shaft | Chrome Steel | AISI 431 | ASTM A 276 |
| Impeller | Chrome Steel | AISI 410 | ASTM A 276 |
| Bowl | Cast Iron | FG 200 | IS: 210 |
| NRV Body | Cast Iron | FG 200 | IS: 210 |
| Bushes | Bronze | LTB 4 | IS: 318 |
| Rotor | Copper | - | - |
Motor (Neptune)
| OD | Rated Power | Rated Current | Operating Voltage | |
|---|---|---|---|---|
| in mm | in kW | in HP | in Amperes | in Volts |
| 186mm | 33.70 | 45.00 | 80.00 | 250-440 |
| 186mm | 37.00 | 50.00 | 85.00 | 250-440 |
| 186mm | 45.00 | 60.00 | 100.00 | 250-440 |
| 186mm | 52.50 | 70.00 | 110.00 | 250-440 |
| 186mm | 55.00 | 75.00 | 120.00 | 250-440 |
| 186mm | 63.00 | 85.00 | 135.00 | 250-440 |
| 186mm | 75.00 | 100.00 | 158.00 | 250-440 |
Pumps (Jupiter)
| Hydraulic Name | Hydraulic | Discharge at BEP | Head/Stage at BEP | NRV Size | Max.No. Of Stages |
|---|---|---|---|---|---|
| - | - | LPM | M | mm | - |
| 400 | Mixed | 1000 | 13.00 | 100 | 15 |
| 500 | Mixed | 1100 | 14.00 | 100 | 15 |
| 600 | Mixed | 1470 | 15.00 | 100 | 16 |
| 700 | Mixed | 1320 | 17.33 | 100 | 14 |
| 800 | Mixed | 1470 | 17.00 | 100 | 12 |
| 900 | Mixed | 1320 | 20.00 | 125 | 11 |
| 1000 | Mixed | 1500 | 22.00 | 125 | 10 |
